Use Case 1: Premium Center Channel Mono Power Amplifier (AVR Direct Mode)
Dialogue is the most critical element of any home theater movie, and center channel speakers require massive transient currents. Most modern AV Receivers (AVRs) share a single internal power supply across 5 to 9 channels, causing dialogue to sound flat or distorted at high volumes.
-
The Direct Mode Solution: Connect the Center Channel Pre-Out of your AVR directly into the Line Input of the HSWA-300. By completely bypassing the crossover filter (Direct Mode full-range operation), the HSWA-300 takes over the full driving load of your high-end center speaker.
-
The Dynamic Result: Absolute vocal clarity, zero clipping during intense cinematic action sequences, and an immediate reduction in the thermal load on your main AVR.
Use Case 2: Deep-Bass Dedicated Passive Subwoofer Drive

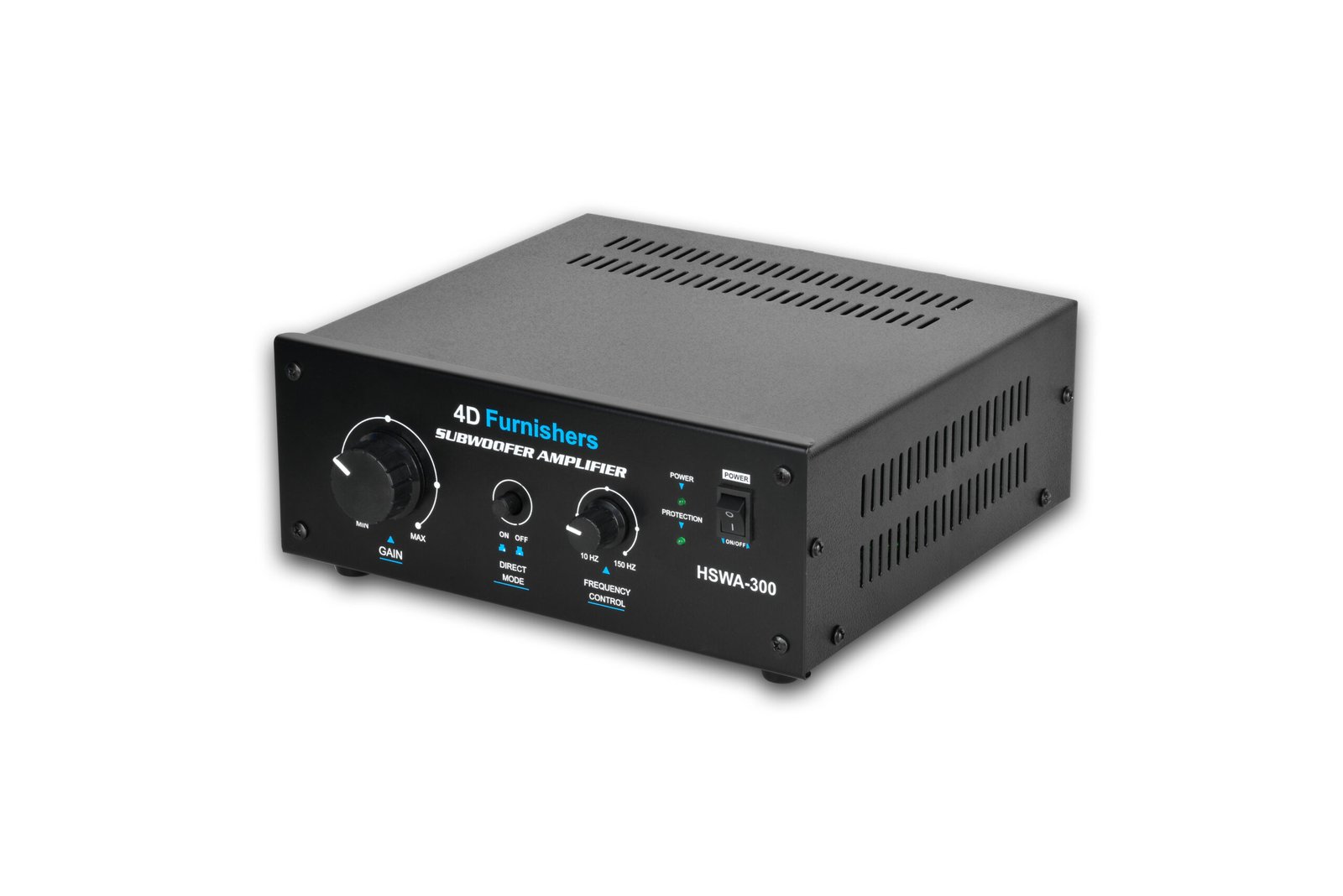

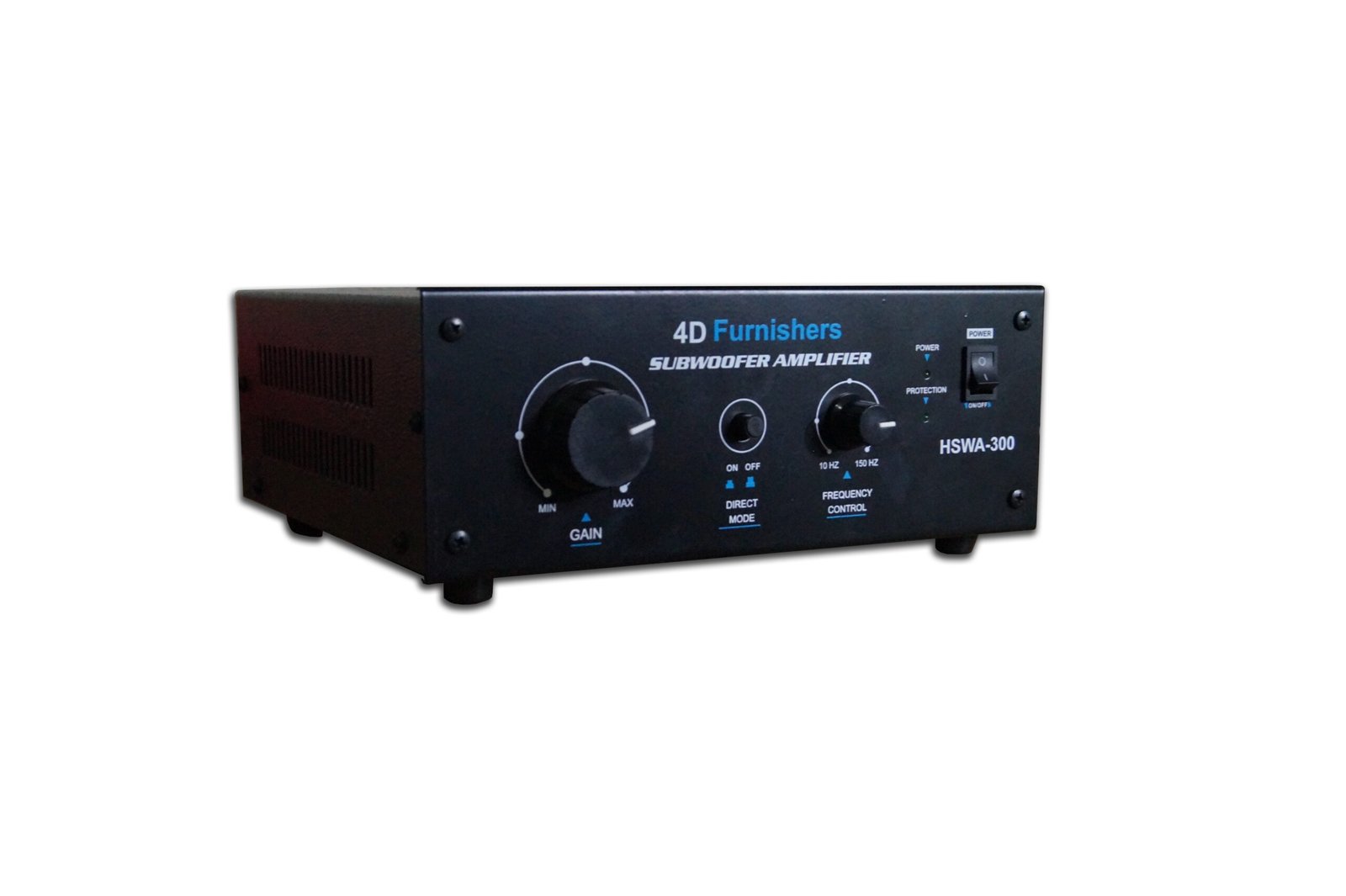

Unlike efficient but sonically clinical Class D digital amplifiers, the HSWA-300 deploys a massive Class AB MOSFET design paired with an oversized pure copper transformer.
-
Frequencies Down to 10Hz: Engineered for structural room acoustics, it pushes massive current down to single-digit frequencies.
-
Built-in Low-Pass Filter (LPF): Toggles on cleanly to cut off mid/high frequencies, isolating pure, cinematic sub-bass rumble for any passive box or car bass tube brought indoors.
Technical Specifications
| Feature / Parametric Data | Technical Architecture Specs |
| Application Profile | Mono Subwoofer Amplifier / Center Channel Power Amp |
| Circuit Topology | Pure Class AB High-Current Linear MOSFET Design |
| Power Handling Capacity | 300 Watts Peak / 200 Watts Continuous RMS Output |
| Power Transformer Core | Heavy-Duty Industrial Pure Copper Core |
| Dual-Mode System Pass | Dedicated LPF Subwoofer Filter (10Hz – 150Hz) OR Full-Range Pure Power Direct Mode for Center Channel |
| Chassis Assembly | Rigid Extruded CNC Aluminum Heat Sink Panel |
| Speaker Load Handling | Optimally Engineered for Stable 4 Ohm to 8 Ohm Loads |

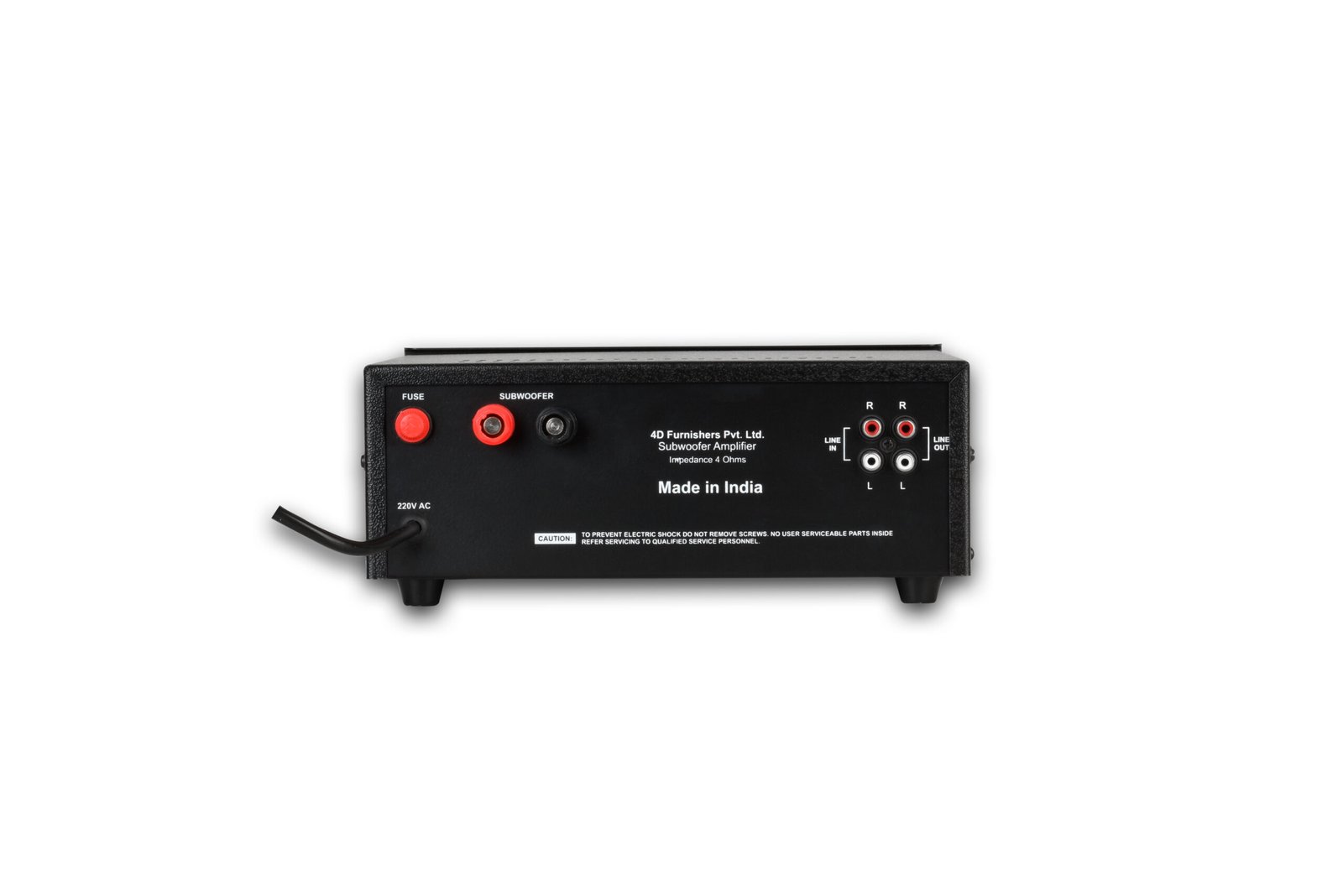

| Input Signals | 1x RCA Line Input (Connects to Sub-Out or Center Pre-Out) |
| Output Daisy-Chain | 1x RCA Line Output to bypass signal to secondary monoblocks |
Frequently Asked Questions
Q: Can I use the HSWA-300 to power a center channel speaker if my AVR doesn’t have Pre-Outs?
A: Yes, absolutely! If your AV Receiver lacks native RCA Pre-Outs, you can still easily add our high-current Class AB monoblock to your setup using a High-to-Low Impedance Converter (Speaker-Level to Line-Level Converter, similar to car audio setups).
To make it entirely hassle-free for you, 4D Furnishers will include a high-quality High-to-Low Impedance Converter absolutely FREE with your purchase upon request! Simply run the speaker wires from your AVR’s center terminal into the converter, plug the clean RCA line-level signal straight into the amplifier input, and unleash massive headroom and vocal clarity on any home theater receiver on the market.
Q: Why choose a Class AB monoblock over a Class D amplifier for a center channel speaker?
A: Center channel dialogue demands rich, natural tonal accuracy and immense current reserves. Class AB circuitry preserves mid-range warmth and clear high frequencies without the high-frequency switching noise or clinical coldness typical of entry-level Class D modules.

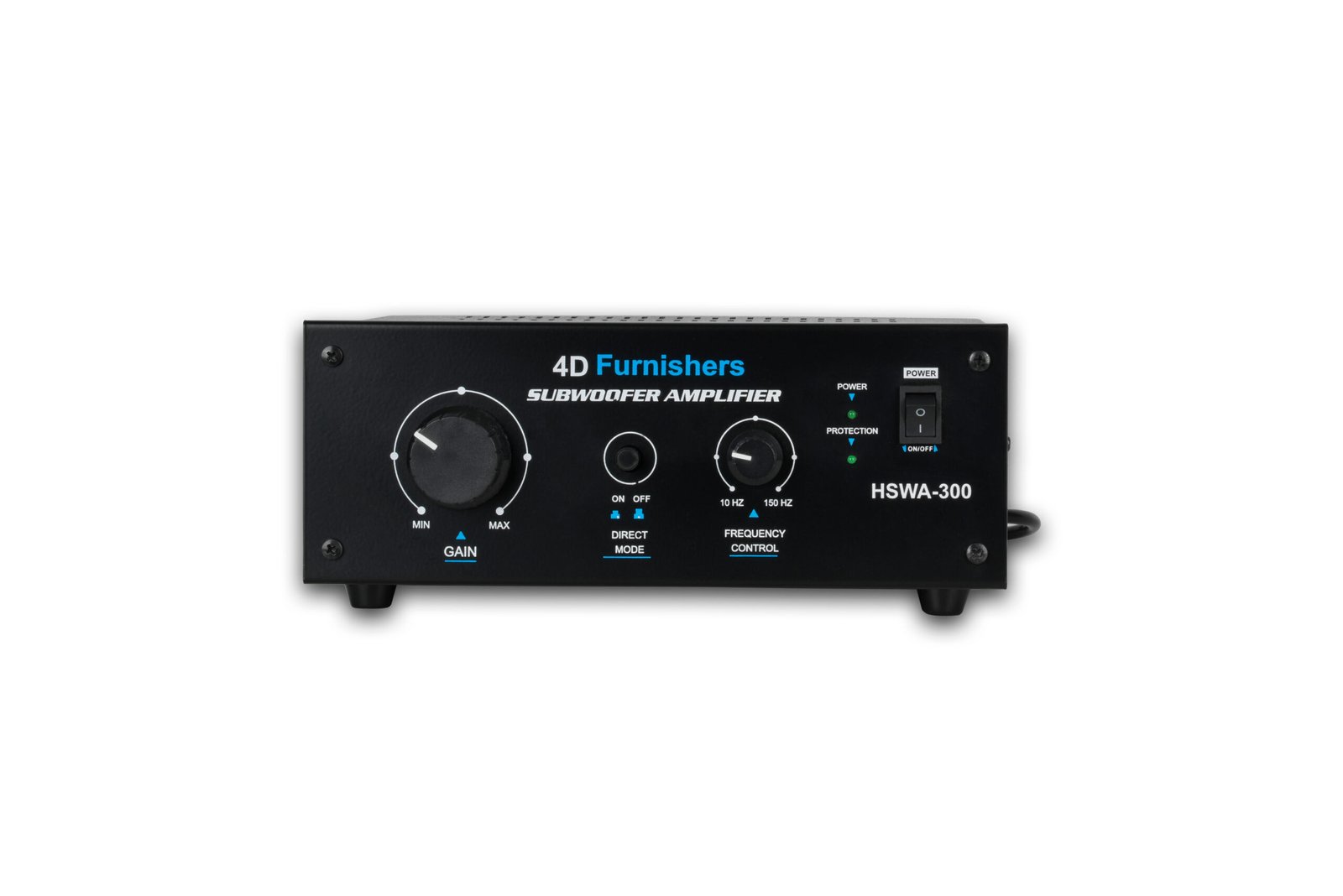

Q: How do I toggle between Subwoofer Mode and Center Channel Direct Mode?
A: The onboard processing board allows you to engage or bypass the active low-pass filter cleanly, switching the monoblock from a restricted sub-bass engine to a full-bandwidth, high-fidelity mono power amplifier instantly.
